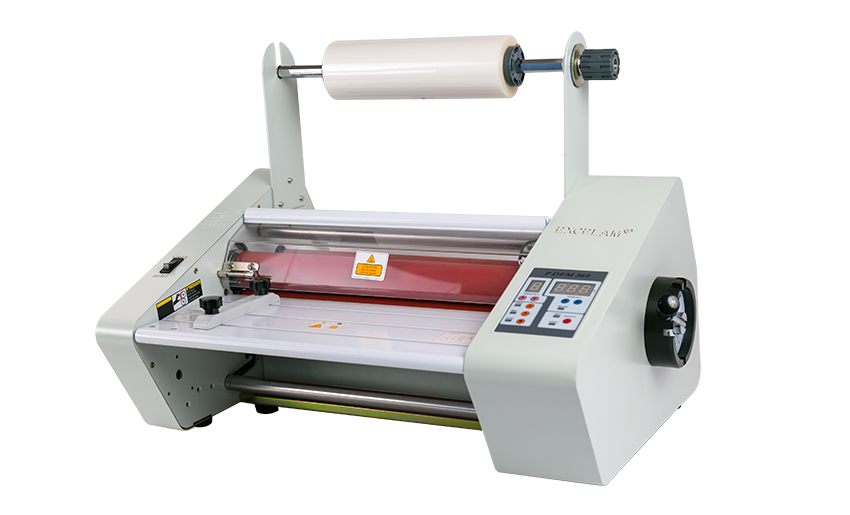

Roll To Roll Laminator Specifications

Model:  PDFM360 PDFM360 STEEL PDFM480 PDFM650 PDFM1100
Laminating Width:  360mm 360mm 480mm 650mm 1070mm
Laminating Speed:  0.36-1.9m/min 0.36-1.9m/min 0.36-1.9m/min 0.4-3.3m/min 0.4-3.3m/min
Mounting Distance between rollers: 3mm 3mm 3mm 3mm 3mm
Operation Temperature:  0-150 ? 0-150 ? 0-150 ? 0-150 ? 0-150 ?
Heating System: roller inside heater roller inside heater roller inside heater roller inside heater roller inside heater
Warm Up Time: 8mins 8mins 8mins 8mins 8mins
Laminating Thickness:  Up to 200mic  Up to 200mic  Up to 200mic  Up to 200mic  Up to 200mic
Roller Diameter:  43.5mm 43.5mm 43.5mm 55mm 75mm
Roller:  4 4 4 4 4
Document Reverse Function:  Yes Yes Yes Yes Yes
Cooling Fan: 1 1 2 2 2
Power Consumption:  1000W 1000W 1200W 1500W 2400W
Power Supplies (optional):  110V/60HZ , 220V/50HZ  110V/60HZ , 220V/50HZ  110V/60HZ , 220V/50HZ  110V/60HZ , 220V/50HZ  110V/60HZ , 220V/50HZ
Machine Body:  Metal  Metal  Metal  Metal  Metal
Machine Dimension:  645x435x270mm 645x435x270mm 765x435x270mm 990x435x300mm 1350x600x1200mm
Machine Net Weight:  27kgs 27kgs 33.6kgs 41kgs 155kgs
Package:  1pc/CTN 1pc/CTN 1pc/CTN 1pc/CTN 1pc/CTN
CTN Size:  77x64x46cm 77x64x46cm 94x69x56cm 118x70x65cm 153x65x75cm
Net Weight/CTN:  27.8kgs 27.8kgs 35kgs 62.5kgs 135kgs
Gross Weight/CTN:  33.5kgs 33.5kgs 44.5kgs 74.5kgs 157kgs
